Standard materials
? Carbon steel C60S (N° 1.1211) EN 10132, hardness 350–425 Hv after heat-treatment (hardening and tempering).
? Stainless steel A2 (AISI 304 - N°1.4301 ) EN 10088, cold rolled.
? Stainless steel A4 (AISI 316 - N°1.4401 ) EN 10088, cold rolled.
? Phosphor bronze CuSn8 EN 1652 (N° CW453K), cold rolled.
? Steel DC01 (1.0330) EN 10139
Surface treatments
? Burnishing
? Galvanic zinc plating Cr6free
? Mechanical zinc plating Cr6free
? Nickel plating
? Geomet?
? Other surface treatments on request, according to the minimum delivery quantities.
DIMENSIONS AND FEATURES |

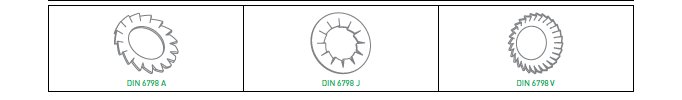

DIN 6798 A/J | ||||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces * | N° pieces standard packaging | N° pieces bulk packaging | N° pieces micro packaging |
M 2.0 | 2.20-2.34 | 4.20-4.50 | 0.27-0.33 | 9 | 0.030 | 5000 | 180000 | 1000 |
M 2.3 | 2.50-2.64 | 4.70-5.00 | 0.36-0.44 | 9 | 0.040 | 5000 | 140000 | 1000 |
M 2.5 | 2.70-2.84 | 5.20-5.50 | 0.36-0.44 | 9 | 0.050 | 5000 | 125000 | 1000 |
M 3.0 | 3.20-3.38 | 5.70-6.00 | 0.36-0.44 | 9 | 0.060 | 2000 | 100000 | 500 |
M 3.5 | 3.70-3.88 | 6.64-7.00 | 0.46-0.54 | 10 | 0.100 | 2000 | 65000 | 500 |
M 4.0 | 4.30-4.48 | 7.64-8.00 | 0.46-0.54 | 11 | 0.130 | 2000 | 45000 | 500 |
M 5.0 | 5.10-5.28 | 8.64-9.00 | 0.46-0.54 | 11 | 0.150 | 1000 | 35000 | 200 |
M 5.0 | 5.30-5.48 | 9.64-10.00 | 0.55-0.65 | 11 | 0.230 | 1000 | 20000 | 200 |
M 6.0 | 6.40-6.62 | 10.57-11.00 | 0.65-0.75 | 12 | 0.290 | 1000 | 17500 | 200 |
M 7.0 | 7.40-7.62 | 12.07-12.50 | 0.75-0.85 | 14 | 0.440 | 1000 | 12000 | 200 |
M 8.0 | 8.20-8.42 | 13.57-14.00 | 0.75-0.85 | 14 | 0.515 | 1000 | 10000 | 200 |
M 8.0 | 8.40-8.62 | 14.57-15.00 | 0.75-0.85 | 14 | 0.680 | 1000 | 7500 | 200 |
M 10.0 | 10.50-10.77 | 17.57-18.00 | 0.85-0.95 | 16 | 1.020 | 1000 | 5000 | 100 |
M 12.0 | 13.00-13.27 | 19.98-20.50 | 0.94-1.06 | 16 | 1.260 | 1000 | 3500 | 100 |
M 14.0 | 15.00-15.27 | 23.48-24.00 | 0.94-1.06 | 18 | 1.910 | 500 | 2000 | 100 |
M 16.0 | 17.00-17.27 | 25.48-26.00 | 1.14-1.26 | 18 | 2.560 | 500 | 1500 | 100 |
M 18.0 | 19.00-19.33 | 29.48-30.00 | 1.34-1.46 | 18 | 4.270 | 250 | 900 | |
M 20.0 | 21.00-21.33 | 32.38-33.00 | 1.34-1.46 | 20 | 5.300 | 250 | 750 | |
M 22.0 | 23.00-23.33 | 35.38-36.00 | 1.42-1.58 | 20 | 6.530 | 200 | 650 | |
M 24.0 | 25.00-25.33 | 37.38-38.00 | 1.42-1.58 | 20 | 6.900 | 150 | 600 | |
M 27.0 | 28.00-28.33 | 43.38-44.00 | 1.52-1.68 | 22 | 8.790 | 100 | 450 | |
M 30.0 | 31.00-31.39 | 47.38-48.00 | 1.52-1.68 | 22 | 11.620 | 100 | 350 | |
* The specified values refer to the version DIN 6798 A in carbon steel.
Standard materials: carbon steel, stainless steel A2 (AISI 304), stainless steel A4 (AISI 316), phosphor bronze.
DIN 6798 V | ||||||
Screw size | Internal diameter min.-max. | External diameter ~ | Thickness min.-max. | Number of teeth | Kg/1000 pieces | N° pieces standard packaging |
M 4.0 | 4.30-4.48 | 8.00 | 0.24-0.27 | 14 | 0.100 | 2.000 |
M 5.0 | 5.30-5.48 | 9.80 | 0.29-0.32 | 14 | 0.200 | 1.000 |
M 6.0 | 6.40-6.62 | 11.80 | 0.39-0.42 | 16 | 0.300 | 1.000 |
M 8.0 | 8.40-8.62 | 15.30 | 0.39-0.42 | 18 | 0.500 | 1.000 |
M 10.0 | 10.50-10.77 | 19.00 | 0.48-0.52 | 20 | 1.000 | 1.000 |
M 12.0 | 13.00-13.27 | 23.00 | 0.48-0.52 | 26 | 1.500 | 1.000 |
M 14.0 | 15.00-15.27 | 26.20 | 0.58-0.62 | 28 | 1.900 | 500 |
M 16.0 | 17.00-17.27 | 30.20 | 0.58-0.62 | 30 | 2.300 | 500 |
Standard material: carbon steel.

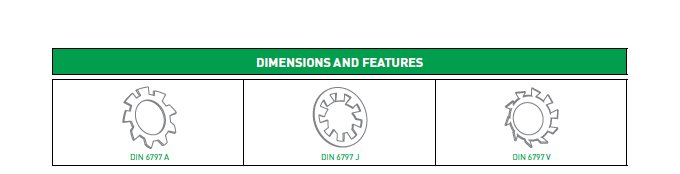

DIN 6797 A/J | ||||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces * | N° pieces standard packaging | N° pieces bulk packaging | N° pieces micro packaging |
M 2.0 | 2.20-2.34 | 4.20-4.50 | 0.27-0.33 | 6 | 0.020 | 5000 | 275000 | 1000 |
M 2.3 | 2.50-2.64 | 4.70-5.00 | 0.36-0.44 | 6 | 0.025 | 5000 | 200000 | 1000 |
M 2.5 | 2.70-2.84 | 5.20-5.50 | 0.36-0.44 | 6 | 0.040 | 5000 | 170000 | 1000 |
M 3.0 | 3.20-3.38 | 5.70-6.00 | 0.36-0.44 | 6 | 0.040 | 2000 | 160000 | 500 |
M 3.5 | 3.70-3.88 | 6.64-7.00 | 0.46-0.54 | 6 | 0.070 | 2000 | 80000 | 500 |
M 4.0 | 4.30-4.48 | 7.64-8.00 | 0.46-0.54 | 8 | 0.090 | 2000 | 60000 | 500 |
M 5.0 | 5.10-5.28 | 8.64-9.00 | 0.46-0.54 | 8 | 0.120 | 1000 | 50000 | 200 |
M 5.0 | 5.30-5.48 | 9.64-10.00 | 0.55-0.65 | 8 | 0.175 | 1000 | 35000 | 200 |
M 6.0 | 6.40-6.62 | 10.57-11.00 | 0.65-0.75 | 8 | 0.217 | 1000 | 25000 | 200 |
M 7.0 | 7.40-7.62 | 12.07-12.50 | 0.75-0.85 | 8 | 0.330 | 1000 | 16000 | 200 |
M 8.0 | 8.20-8.42 | 13.57-14.00 | 0.75-0.85 | 8 | 0.400 | 1000 | 12000 | 200 |
M 8.0 | 8.40-8.62 | 14.57-15.00 | 0.75-0.85 | 8 | 0.480 | 1000 | 12000 | 200 |
M 10.0 | 10.50-10.77 | 17.57-18.00 | 0.85-0.95 | 9 | 0.750 | 1000 | 6000 | 100 |
M 12.0 | 13.00-13.27 | 19.98-20.50 | 0.94-1.06 | 10 | 1.000 | 1000 | 4000 | 100 |
M 14.0 | 15.00-15.27 | 23.48-24.00 | 0.94-1.06 | 10 | 1.390 | 1000 | 3000 | 100 |
M 16.0 | 17.00-17.27 | 25.48-26.00 | 1.14-1.26 | 12 | 1.920 | 500 | 2000 | 100 |
M 18.0 | 19.00-19.33 | 29.48-30.00 | 1.34-1.46 | 12 | 3.235 | 500 | 1500 | |
M 20.0 | 21.00-21.33 | 32.38-33.00 | 1.34-1.46 | 12 | 4.030 | 250 | 1000 | |
M 22.0 | 23.00-23.33 | 35.38-36.00 | 1.42-1.58 | 14 | 4.500 | 250 | 950 | |
M 24.0 | 25.00-25.33 | 37.38-38.00 | 1.42-1.58 | 14 | 4.855 | 250 | 850 | |
M 27.0 | 28.00-28.33 | 43.38-44.00 | 1.52-1.68 | 14 | 7.350 | 150 | 500 | |
M 30.0 | 31.00-31.39 | 47.38-48.00 | 1.52-1.68 | 14 | 9.030 | 150 | 400 | |
* The specified values refer to the version DIN 6797 A in carbon steel.
Standard materials: carbon steel, stainless steel A2 (AISI 304).
DIN 6797 V | ||||||
Screw size | Internal diameter min.-max. | External diameter ~ | Thickness min.-max. | Number of teeth | Kg/1000 pieces | N° pieces standard packaging |
M 4.0 | 4.30-4.48 | 8.00 | 0.24-0.27 | 8 | 0.050 | 2.000 |
M 5.0 | 5.30-5.48 | 9.80 | 0.29-0.32 | 8 | 0.120 | 1.000 |
M 6.0 | 6.40-6.62 | 11.80 | 0.39-0.42 | 10 | 0.200 | 1.000 |
M 8.0 | 8.40-8.62 | 15.30 | 0.39-0.42 | 10 | 0.400 | 1.000 |
M 10.0 | 10.50-10.77 | 19.00 | 0.48-0.52 | 10 | 0.700 | 1.000 |
M 12.0 | 13.00-13.27 | 23.00 | 0.48-0.52 | 10 | 1.200 | 1.000 |
M 14.0 | 15.00-15.27 | 26.20 | 0.58-0.62 | 12 | 1.300 | 500 |
M 16.0 | 17.00-17.27 | 30.20 | 0.58-0.62 | 12 | 1.300 | 500 |
Standard material: carbon steel.

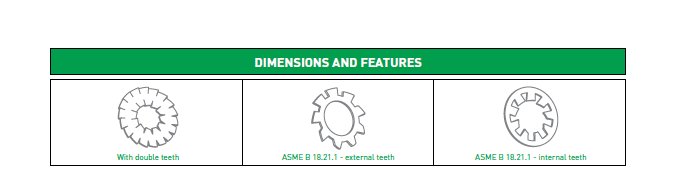

ASME B 18.21.1 - EXTERNAL TEETH | |||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces | N° pieces standard packaging | N° pieces bulk packaging |
N.10 | 4.95-5.18 | 10.03-10.31 | 0.45-0.61 | 8 | 0.155 | 1000 | 30000 |
1/4" | 6.50-6.73 | 12.54-12.85 | 0.59-0.71 | 10 | 0.300 | 1000 | 15000 |
5/16" | 8.12-8.43 | 14.93-15.26 | 0.71-0.86 | 8 | 0.530 | 1000 | 10000 |
3/8" | 9.75-10.05 | 17.27-17.62 | 0.81-1.01 | 12 | 0.750 | 1000 | 7500 |
7/16" | 11.37-11.70 | 18.90-19.30 | 0.81-1.01 | 12 | 1.165 | 1000 | 5000 |
1/2" | 13.03-13.43 | 22.35-22.80 | 0.94-1.14 | 12 | 1.360 | 1000 | 3750 |
1" | 26.03-26.92 | 40.39-41.15 | 1.50-1.70 | 14 | 7.800 | 150 | 500 |
ASME B 18.21.1 - INTERNAL TEETH | |||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces | N° pieces standard packaging | N° pieces bulk packaging |
N.10 | 4.95-5.18 | 9.37-9.67 | 0.45-0.61 | 8 | 0.153 | 1000 | 35000 |
1/4" | 6.50-6.78 | 11.83-12.14 | 0.59-0.71 | 8 | 0.300 | 1000 | 15000 |
5/16" | 8.12-8.43 | 15.08-15.41 | 0.71-0.86 | 8 | 0.530 | 1000 | 10000 |
3/8" | 9.75-10.05 | 17.20-17.57 | 0.81-1.01 | 10 | 0.750 | 1000 | 7500 |
7/16" | 11.37-11.70 | 19.58-20.04 | 0.81-1.01 | 10 | 1.164 | 1000 | 5000 |
1/2" | 13.00-13.43 | 22.02-22.42 | 0.94-1.14 | 10 | 1.360 | 1000 | 3750 |
1" | 25.88-26.49 | 40.97-41.57 | 1.50-1.70 | 14 | 7.800 | 150 | 500 |
WITH DOUBLE TEETH | |||||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Height min.-max. | Number of internal teeth | Number of external teeth | Kg/1000 pieces | N° pieces standard packaging | N° pieces bulk packaging |
M 4 | 4.20-4.38 | 15.17-15.60 | 0.77-0.83 | 2.00-2.80 | 7 | 16 | 1.100 | 1000 | 6500 |
M 5 | 5.10-5.28 | 17.47-17.90 | 0.77-0.83 | 2.00-2.80 | 7 | 16 | 1.450 | 1000 | 5000 |
M 6 | 6.10-6.32 | 17.70-18.20 | 0.87-0.93 | 2.25-3.15 | 8 | 16 | 1.530 | 1000 | 4500 |
M 8 | 8.20-8.42 | 21.73-22.25 | 0.96-1.04 | 2.50-3.50 | 10 | 16 | 2.490 | 500 | 3250 |
M 10 | 10.20-10.47 | 25.58-26.10 | 1.06-1.14 | 2.60-3.85 | 12 | 18 | 3.770 | 500 | 1750 |
M 12 | 12.50-12.77 | 29.78-30.30 | 1.16-1.24 | 3.00-4.20 | 12 | 18 | 5.400 | 500 | 1400 |
M 16 | 16.30-16.73 | 35.48-36.10 | 1.36-1.44 | 3.50-4.90 | 12 | 20 | 8.700 | 250 | 800 |
Standard material: carbon steel.

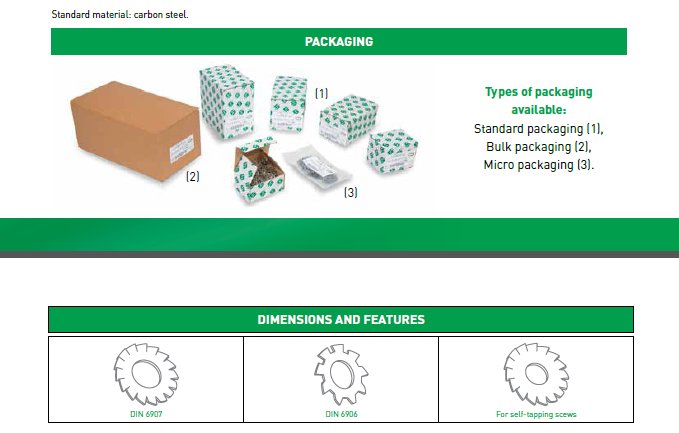

DIN 6907 | ||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces * | N° pieces bulk packaging |
M 2.5 | 2.25-2.35 | 5.32-5.50 | 0.36-0.44 | 9 | 0.055 | 125000 |
M 3.0 | 2.70-2.80 | 5.82-6.00 | 0.36-0.44 | 9 | 0.070 | 100000 |
M 3.5 | 3.20-3.32 | 6.78-7.00 | 0.46-0.54 | 10 | 0.120 | 65000 |
M 4.0 | 3.60-3.72 | 7.78-8.00 | 0.46-0.54 | 11 | 0.155 | 50000 |
M 5.0 | 4.55-4.67 | 8.78-9.00 | 0.55-0.65 | 11 | 0.210 | 35000 |
M 6.0 | 5.50-5.62 | 10.73-11.00 | 0.65-0.75 | 12 | 0.390 | 20000 |
M 8.0 | 7.40-7.55 | 13.73-14.00 | 0.75-0.85 | 14 | 0.620 | 10000 |
* The specified values refer to the version DIN 6907 in carbon steel.
Standard materials: carbon steel, stainless steel A2 (AISI 304).
DIN 6906 | ||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Number of teeth | Kg/1000 pieces | N° pieces bulk packaging |
M 2.5 | 2.25-2.35 | 5.32-5.50 | 0.36-0.44 | 6 | 0.045 | 170000 |
M 3.0 | 2.70-2.80 | 5.82-6.00 | 0.36-0.44 | 6 | 0.050 | 160000 |
M 3.5 | 3.20-3.32 | 6.78-7.00 | 0.46-0.54 | 6 | 0.080 | 100000 |
M 4.0 | 3.60-3.72 | 7.78-8.00 | 0.46-0.54 | 8 | 0.100 | 60000 |
M 5.0 | 4.55-4.67 | 8.78-9.00 | 0.55-0.65 | 8 | 0.165 | 40000 |
M 6.0 | 5.50-5.57 | 10.73-11.00 | 0.65-0.75 | 8 | 0.220 | 25000 |
M 8.0 | 7.40-7.55 | 13.73-14.00 | 0.75-0.85 | 8 | 0.400 | 12000 |
Standard material: carbon steel
FOR SELF-TAPPING SCREWS | ||||||
Screw size | Internal diameter min.-max. | External diameter min.-max. | Thickness min.-max. | Height min.-max. | Kg/1000 pieces | N° pieces bulk packaging |
M 3.5 | 3.04-3.09 | 8.90-9.10 | 0.55-0.65 | 1.43-1.57 | 0.250 | 35000 |
M 3.9 | 3.35-3.40 | 8.90-9.10 | 0.55-0.65 | 1.43-1.57 | 0.255 | 35000 |
M 4.2 | 3.60-3.65 | 8.90-9.10 | 0.55-0.65 | 1.43-1.57 | 0.245 | 35000 |
M 4.2 | 3.60-3.67 | 7.78-8.00 | 0.46-0.54 | 1.23-1.37 | 0.155 | 50000 |
M 4.8 | 4.07-4.13 | 10.90-11.10 | 0.75-0.85 | 1.90-2.10 | 0.515 | 17500 |
M 5.5 | 4.53-4.59 | 10.90-11.10 | 0.75-0.85 | 1.90-2.10 | 0.500 | 17500 |
M 6.3 | 5.37-5.42 | 10.90-11.10 | 0.75-0.85 | 1.90-2.10 | 0.455 | 17500 |
M 6.3 | 5.37-5.42 | 12.40-12.60 | 0.75-0.85 | 1.90-2.10 | 0.640 | 12000 |
Standard material: steel DC01.
