RIPP LOCKe lock washers
The system

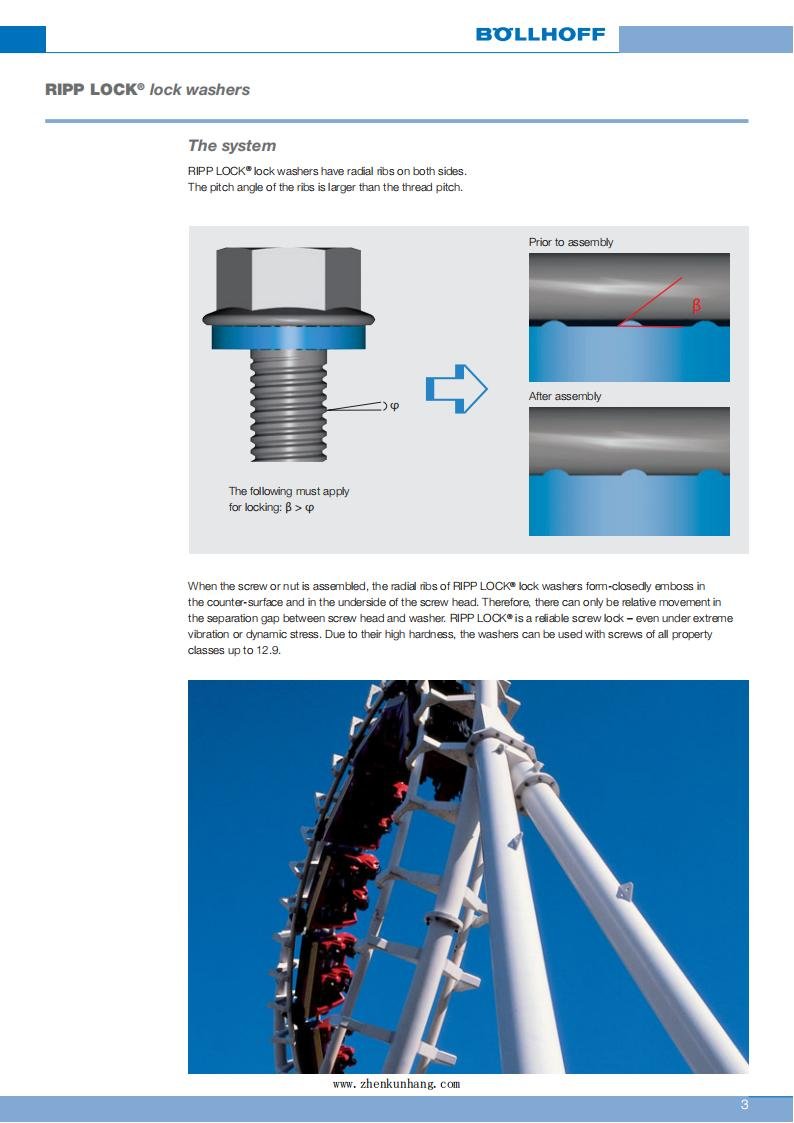

RIPP LOOK"lock washers have radial rbs on both sides. The pitch angle of the ribs is larger than the thread pitch
Plior to assembly
Atter assembl
The falowing must apply far locking:B>φ
When the saew ar nut is assembled, the radial ribs of RIPP LOCK" lock washers form-dosedly emboss in the counter-surtace and in the underside of the screw hesd, Thereiore. there can only be rela ive movementin the separa fon aap batween screw head and washe,Rpp lock is a relable screw lock - even under edreme vibration or dynamic stress.Due to their high hardhess , the washers can be used with screws of al property das ses up to 12.9.
RIPP LOCKe lock washers
Further benefits
Easy assembly and removal - multiple reuse
Economic benetts due to reducton and standarcisalon af assarment Small space reouirements
Not allected by contact with lubricants or greases Pertectly s.ltable for low-strength metals
(aluminium, copper, aluminium and maonesium casting alloys, etc.) Sutable fo al crovery classes uo to 12.9
Partoularly suitable for sensitie surfaoes such as zinc coated, chromium-plated, coated or powder coated surfaces
lmmediate effect - no ouring
Same temperature range as used sarews
Longevty -no ageing, no embrtling or weathering Almost no mechanical abrasion - no chio tormation Reraltind into aimost every construction
Effectwe in aojustable fasteninas of components (e.g. prestressing of belt diive Very smallrea.aion
CAD data avsilable on reaest
TheRipp Loc. deines ficlon waues of most awerse matereis and suriaces
RIPP LOCK lock screws and nuts
Special advantages
helable tastening cornections, no adcttional elements required
m increased contact area makes washers and spring washers unnecessary
Rounded locking tbe enable corosion protectian to be largely maintained at thelastening points, since the fastening does not damage the surtace
Recuced seting walues for the screws because of coldl woking at the damped materials Good tightening characteris tics, excellent reusablity
Design instructions
RIPP LOCK sel-ocking sarews and nuts are avalable as Hexagonsocket sell-lociing screws,property dass 100 Hexagon head sell-loding screws,property dass 100. Hexagon head sell-locking nuts, property dass 10
Property classes
SelHockino srrews100=1.040Nmm
.SelHockng nuts 10: for screws up to property diass 10.9 and saew dass 100 Pooetdasses 12.9and 12 avalabe on ecuest
Because the iibe donat dig into the surtace in the relesse direction, the fastening is gentle to sensitive surtaces The diamace to he sutace sround the contact area is minimal
The diagram shows the prindple of operation of these sel-ockng screws and nuts.
